1033CR Crank Out Awning Bunk Window WITH FLY SCREEN – 1033CR

Universal 1033CR CRANK OUT Awning Bunk Window WITH FLY SCREEN

CLAMP IN WINDOW

To Fit:

Fits Left Or Right

Direct to metal

Note On Install Placement:

Due to the window cranking outwards be mindful fitting it in the panel behind the sliding door as the door could hit the window.

This window fits direct to metal, it is not the correct size for capsules/flares/pods/bump outs

Includes:

• 1 x 1033CR Crank Out Awning Bunk Window WITH FLY SCREEN
• 1 x Internal clamp ring
• Mounting Bolts
• Cut Out Template

Window Specs:

• Manufacturer: Van Glass USA
• Manufacturer Part Number: 1033CR
• Awning Bunk Window
• All our glass meets international safety standards these include: Worldwide Dot Standards, USA Federal Motor Vehicle Safety Standards
• E-marked and AS Rated to strict European standards
• Built in internal Fly Screen
• Fixed position Fly Screen
• Toughened safety glass
• Clamp In Window
• Crank Out / Pop Out Opening Window
• Fits left or right side
• Privacy Stained glass (not a tinting film)
• Tinted to 80% allowing 20% of light to pass through
• Made in China
• Tried and tested design
• Cnc cut and finished glass for smooth edges and for an overall quality fit
• Measurements:
• Overall Size:  882mm x 300mm (34.7″ x 11.8″)
• Window Opening Size: 840mm x 250mm (33″ x 9.8″)
• Window Opens Outwards: 80mm (3″)
• Cut Out Size: 850mm x 270mm (33.4″ x 10.6″)

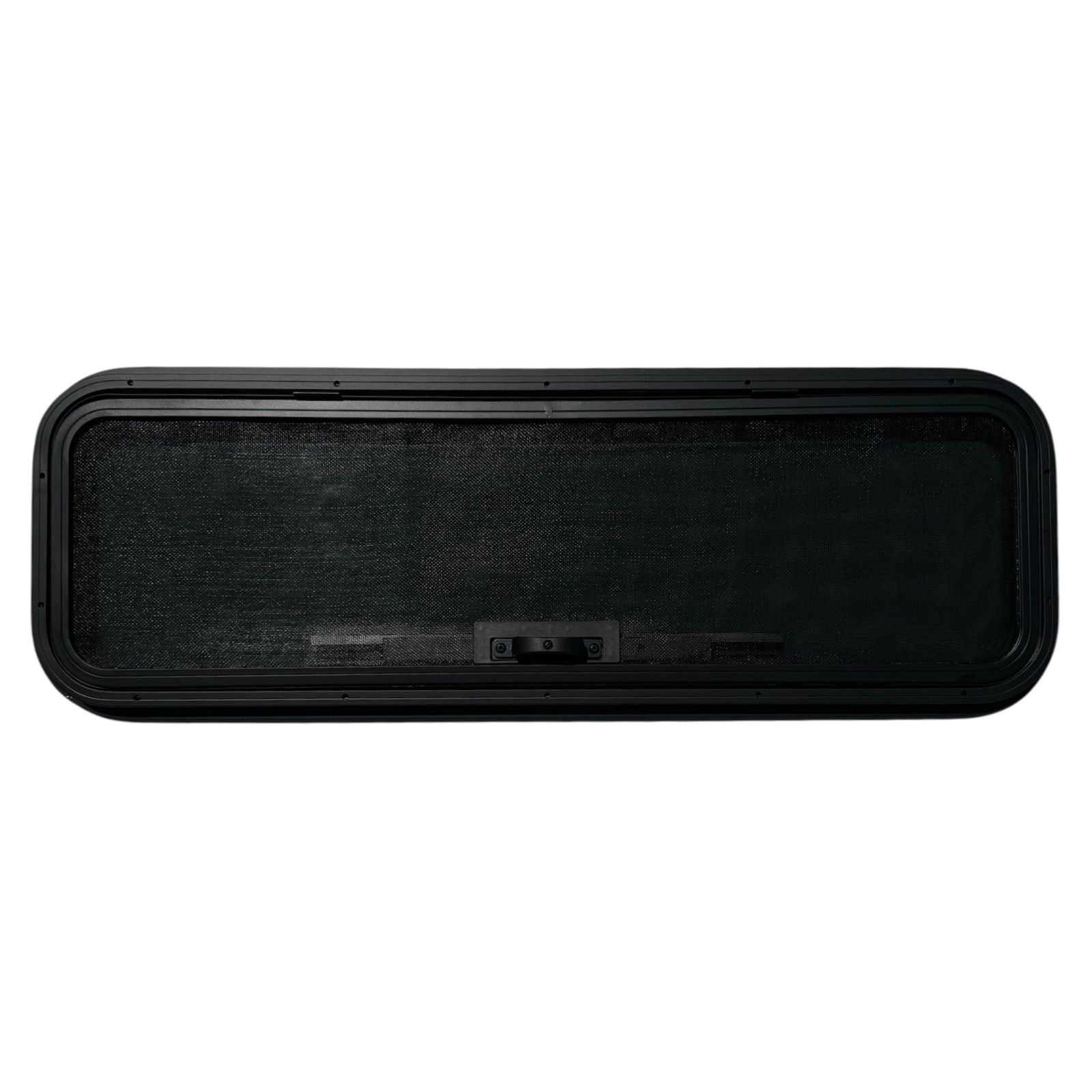

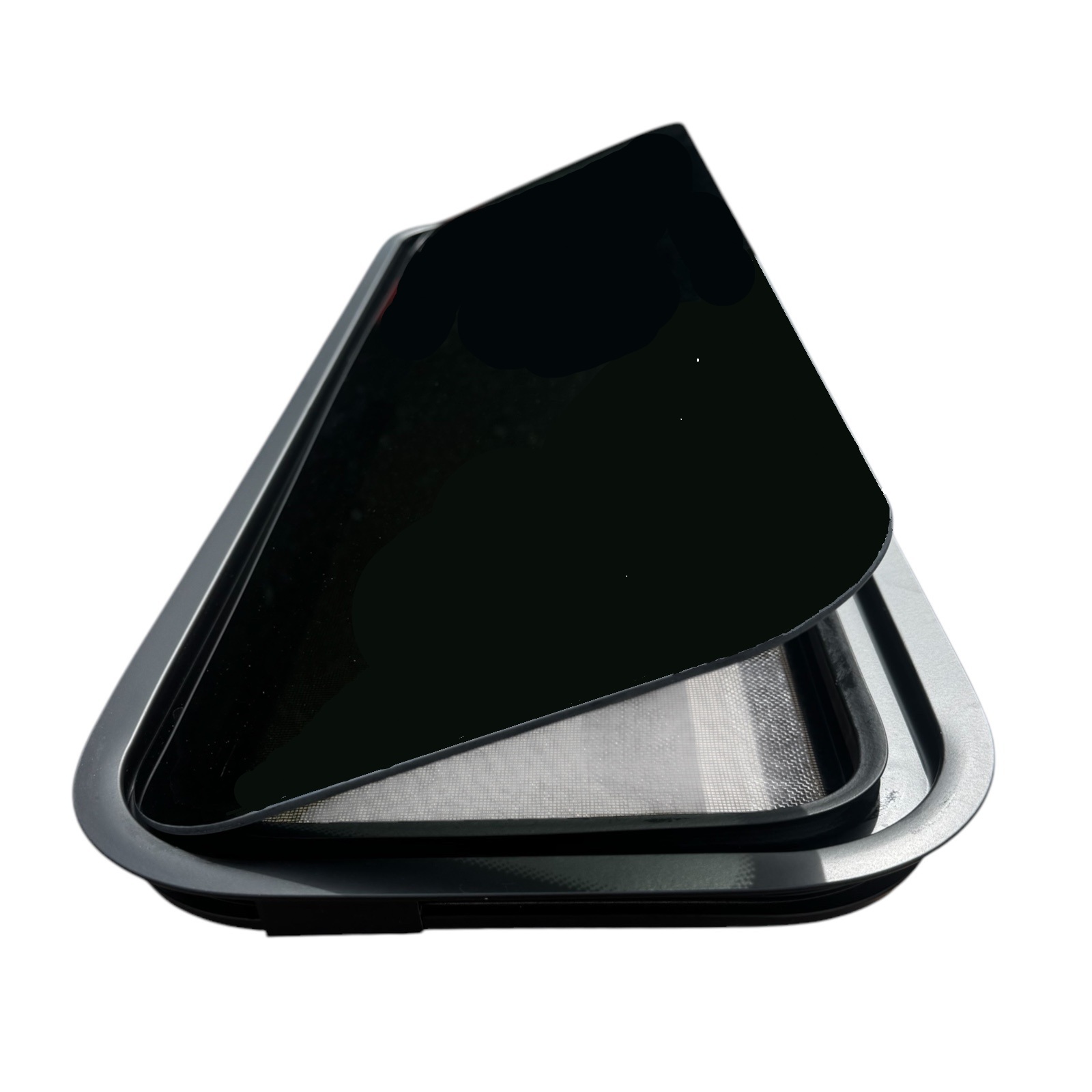

Picture Gallery:
